PNY Nvidia Quadro NVS285, 128MB

5183547-34UU
Used
Workstations (AW)
Other Workstations (AW)
GE HealthCare
GE HealthCare – Imaging/UL/PCS Parts
GE HealthCare
Total
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Características

  • Professional graphics card
  • Average sized chip
  • Consume less power
  • Features single-slot cooling system

Descripción del producto

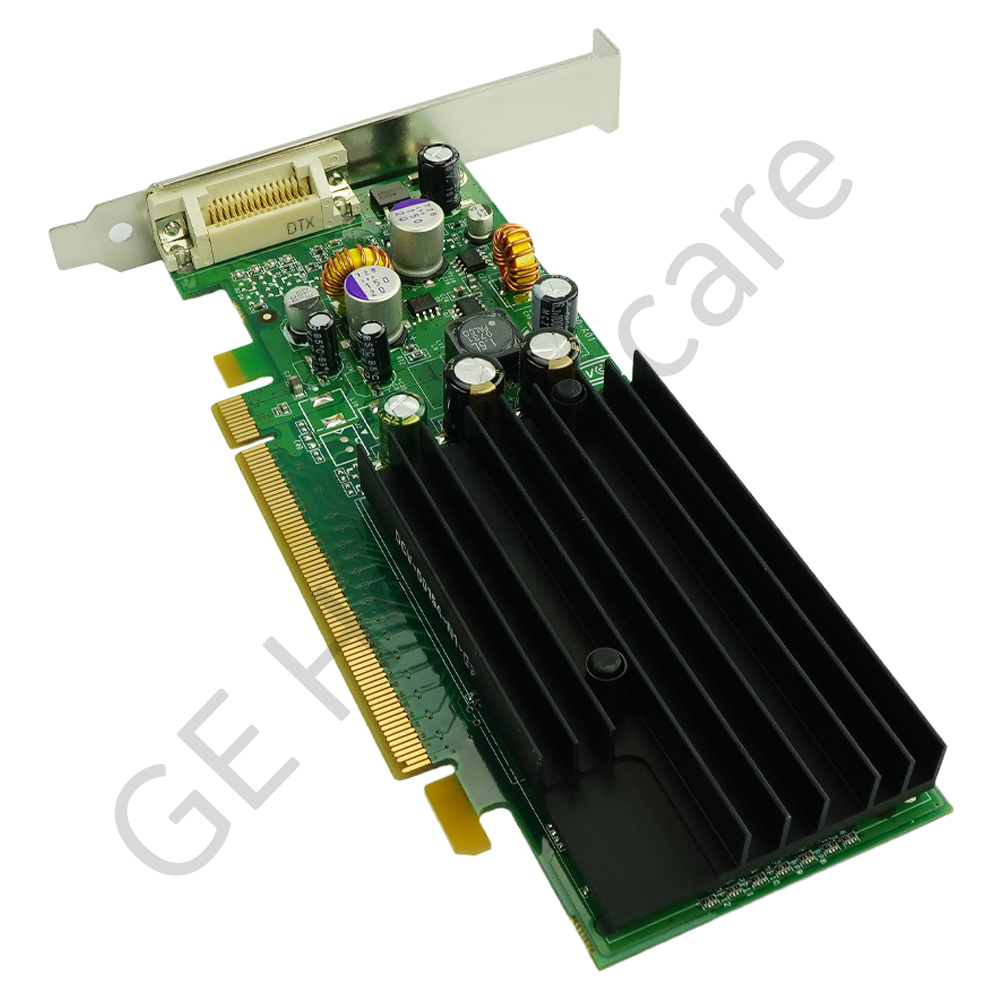

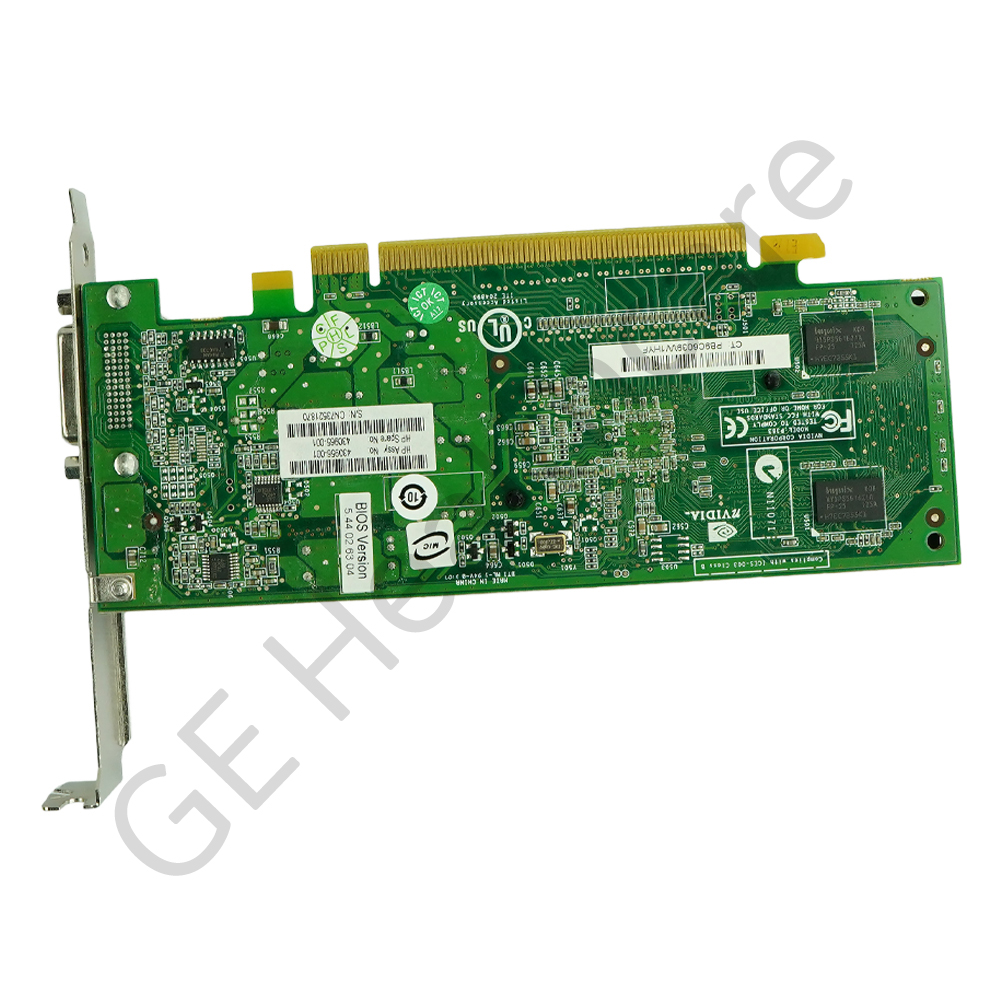

The Quadro NVS 285 is a professional graphics card by NVIDIA, launched in June 2006. It is built on the 110 nm process, and based on the NV44 A2 graphics processor. The NV44 A2 graphics processor is an average sized chip with a die area of 110 mm² and 75 million transistors. It features 4 pixel shaders and 3 vertex shaders, 4 texture mapping units and 2 ROPs. NVIDIA has placed 128 MB DDR memory on the card, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 275 MHz, memory is running at 250 MHz. Being a single-slot card, the NVIDIA Quadro NVS 285 does not require any additional power connector, its power draw is rated at 18 W maximum. Quadro NVS 285 is connected to the rest of the system using a PCI-Express 1.0 x 16 interface. The card measures 168 mm in length, and features a single-slot cooling solution. The part is diligently designed for high performance and reliability. It is securely packaged inside a high quality packing box to avoid physical damage during transit and labeled with details about the product, Quality Assurance (QA) seal and shipment details.
